INTERNAL S TYPE(Mini Pleat)
HEPA FILTER
Ultrathin filter
D.O.P Testing:
99.97%、99.99%at 0.3 μm
Order(MOQ):
1HEPA Filter without partition
PRODUCT HIGHLIGHT:
· Aluminum separator, optional flangeless, single or double flange
· Flange thickness 20mm
· Ultrafine glass fiber is used
· Optional product’s temperature resistance (180°C, 250°C)
· Imported stable performance sealing rubber with low release is used.
· Efficiency: 99.95% (H13)、99.995% (H14)
PRODUCT APPLICATIONS:
Normally used for final filtration applications in clean rooms, computer suites, asbestos removal areas, hospital operating theatres and any site requiring ultra clean conditions.
PRODUCT FEATURES:
|
Continuous Operating Temperature |
Max. 350°C |
|
Operating Relative Humidity |
≤100 (%RH) |
|
Media Material |
Fiberglass |
|
Frame Material |
Galvanised Steel / Aluminium / Stainless Steel |
|
Frame Thickness |
80mm, 150mm, 220mm, 292mm |
|
Frame Header |
Non-Header / Single Header / Double Header (Thickness: 20mm) |
|
Efficiency |
H13, H14 (EN1822:2009) |
|
Separator Material |
Corrugated Aluminium |

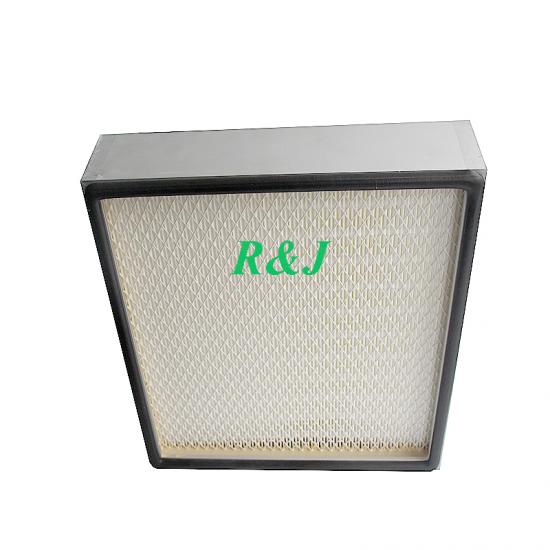

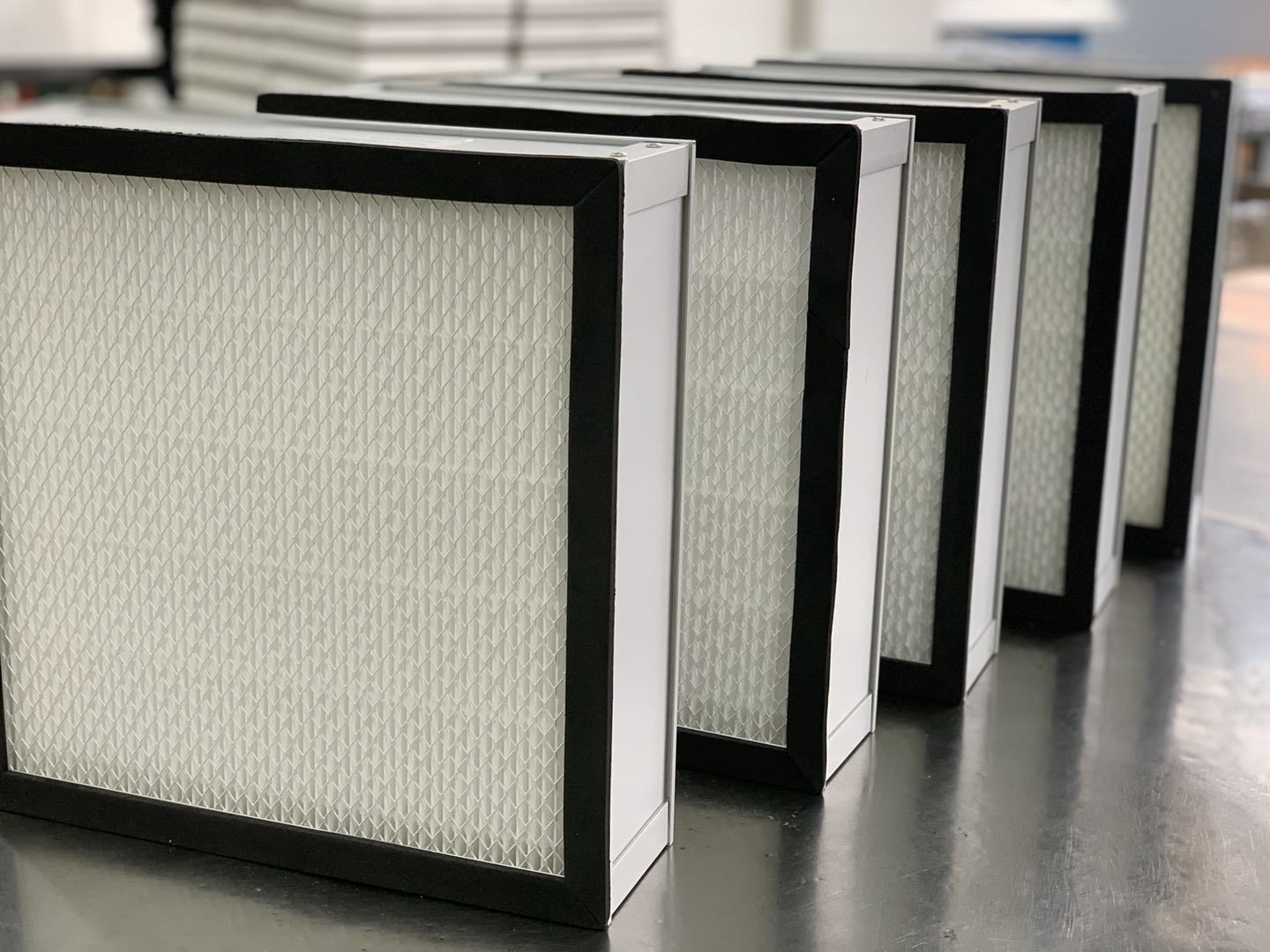

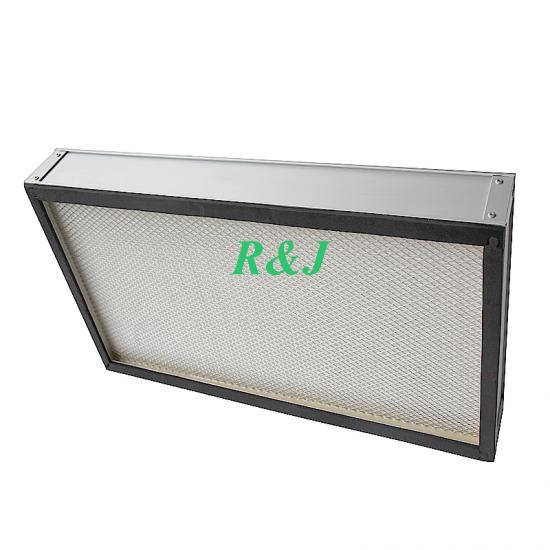

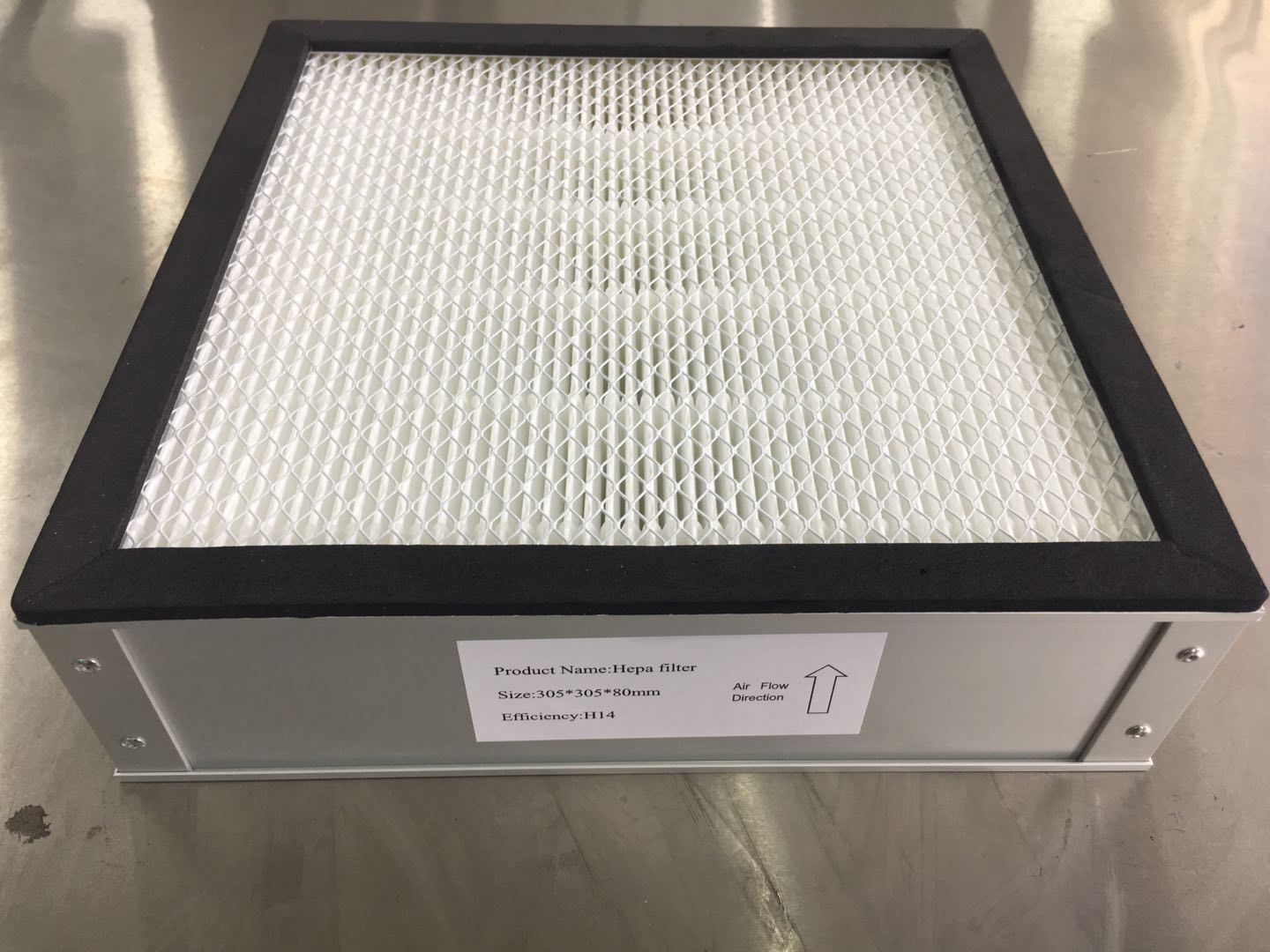

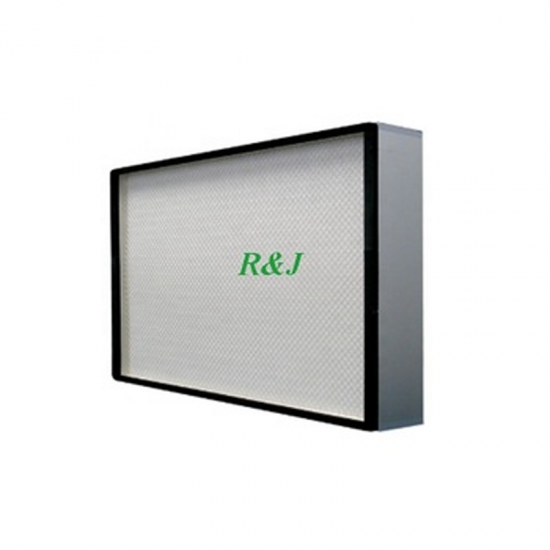

Product picture:
