Order(MOQ):

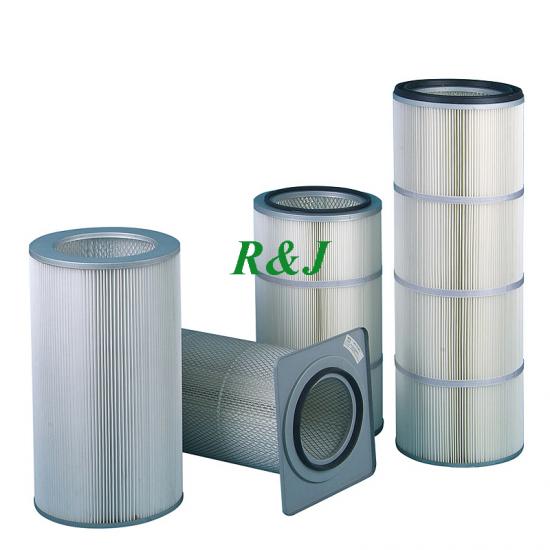

1Properties and features
1.Use polyester fiber material. The fiber has good wearability and it can improve the filtration velocity.
2.Speciality of hot-rolled filter material: Good stiffness, be washable, extended service life.
3.The perfect combination of anti-fingerprint top and bottom covers, rustless macroporous rhombus supporting mesh and resilient rubber seal ring is convenient for seal installation and pulse-jet cleaning.
4.Suggest working temperature below 135 degrees.
Applications: gas and dust filtration in powder spraying, steel foundary, sand blasting, paint, wood, cement, mental glass processing and other industries.
|
Cartridge Model |
Top end |
Top end |
Bottom end |
Bolt hole(m²) |
Height |
Filtration area |
|
RJ/F 3266 |
Φ324 |
Φ213 |
Φ324 |
Φ14 |
660 |
9.4 |
|
RJ/F 3275 |
Φ324 |
Φ213 |
Φ324 |
Φ14 |
750 |
10.6 |
|
RJ/F 32100 |
Φ324 |
Φ213 |
Φ324 |
Φ14 |
1000 |
14.2 |
|
|
||||||
|
RJ/F 3566 |
Φ352 |
Φ241 |
Φ352 |
Φ16 |
660 |
10 |
|
RJ/F 3575 |
Φ352 |
Φ241 |
Φ352 |
Φ16 |
750 |
11.3 |
|
RJ/F 35100 |
Φ352 |
Φ241 |
Φ352 |
Φ16 |
1000 |
15.1 |
