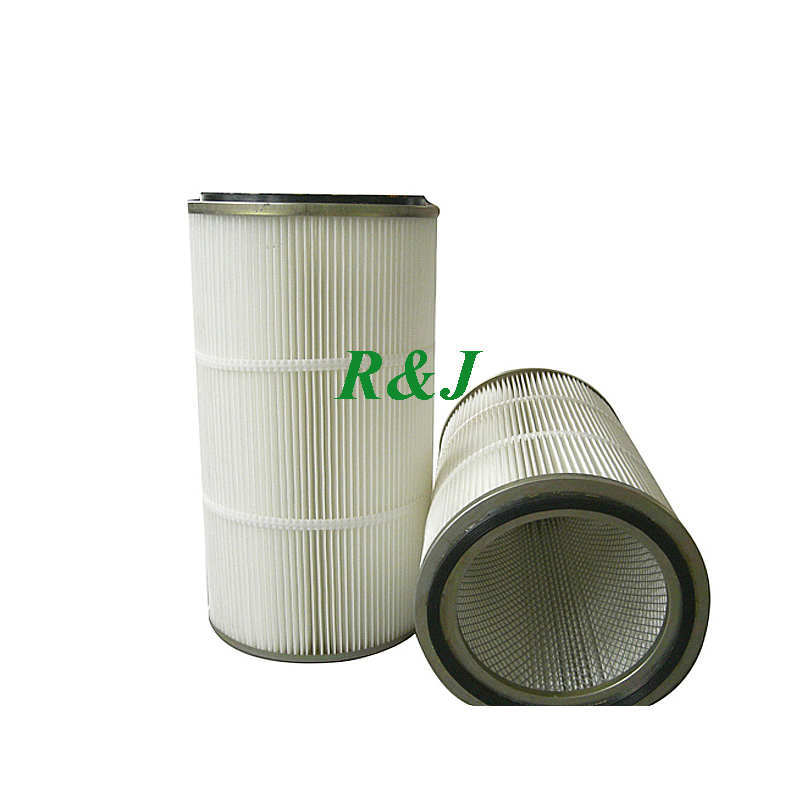

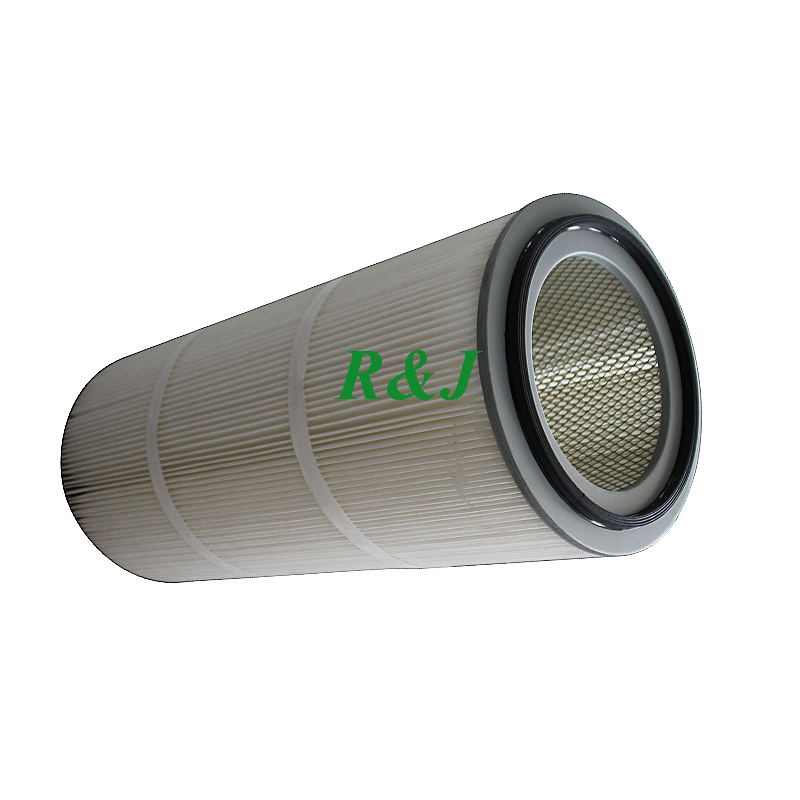

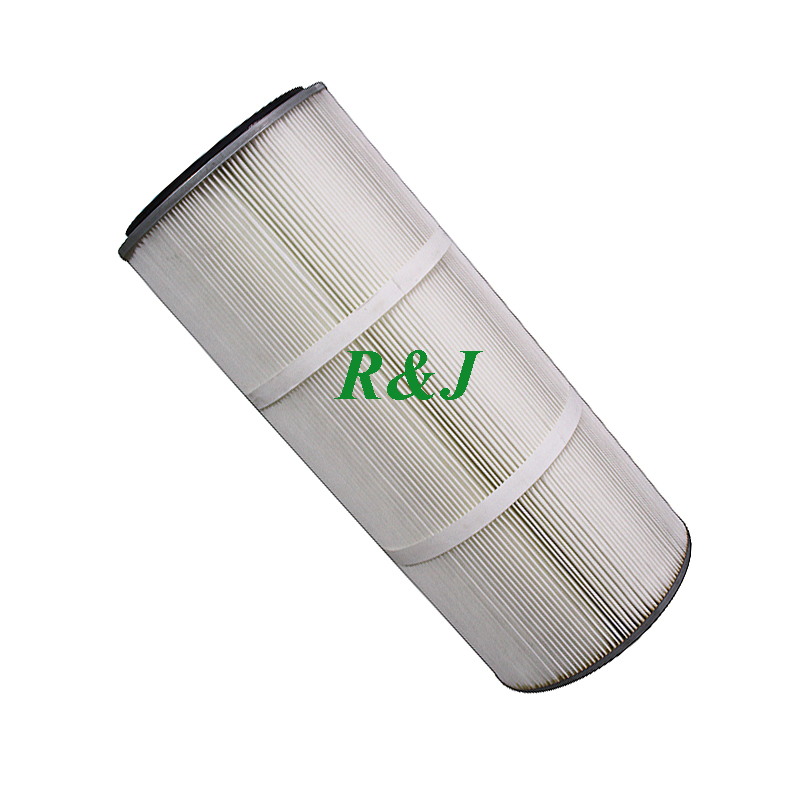

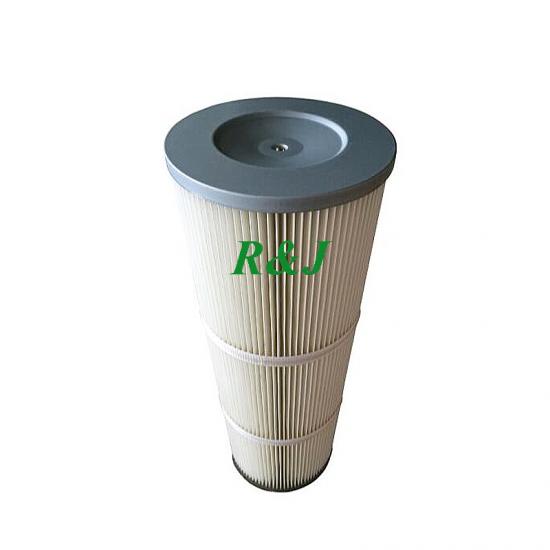

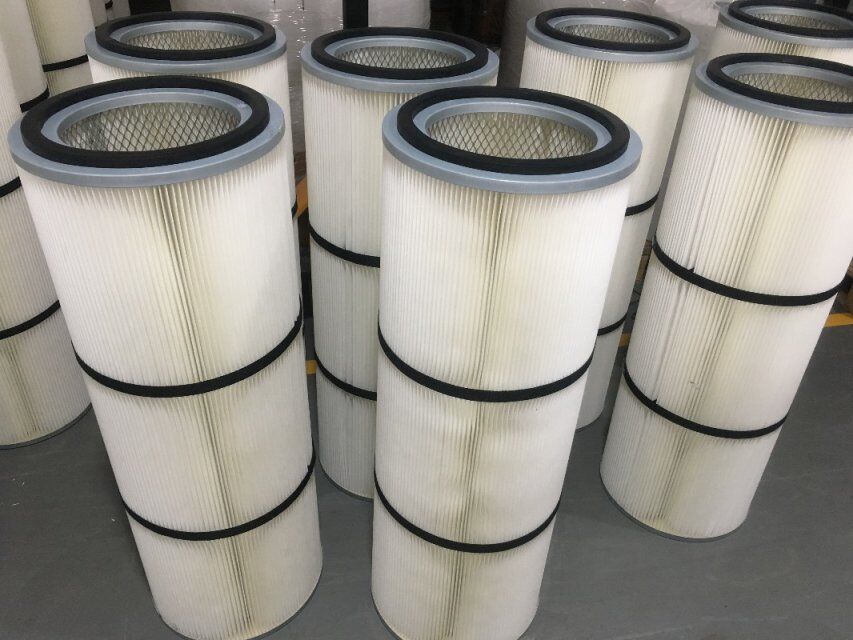

Polyester with PTFE membrane filter cartridge

Media: polyester with PTFE membrane                                                                                              Customization Accepted

Category: Air Filter Cartridge

  • Order(MOQ):

    1
  • Product Detail

Properties and features


1.Adopting imported microporous polytetrafluoroethylene (PTFE) laminating technology.

2.Speciality of membrane-covering: Stable chemical corrosion resistance, water repellent, oil repellent, better air permeability.

3. The dust layer formed by filtration be easy to be separated, reduce pressure difference, more thorough ash removal.

4.Be used in any structured filter cartridge, be used to intercept more fine dust.

Filtering level : MERV11-MERV15, the finest filtering precision: 0.3um




Applications: gas and dust filtration in powder spraying, steel foundary, sand blasting, paint, wood, cement, mental glass processing and other industries.

Cartridge Model

Top end
Cap OD(m²)

Top end
Cap ID(m²)

Bottom end
Cap OD(m²)

Bolt hole(m²)

Height
(m²)

Filtration area
(m²)

RJ/F 3266

Φ324

Φ213

Φ324

Φ14

660

9.4

RJ/F 3275

Φ324

Φ213

Φ324

Φ14

750

10.6

RJ/F 32100

Φ324

Φ213

Φ324

Φ14

1000

14.2


RJ/F 3566

Φ352

Φ241

Φ352

Φ16

660

10

RJ/F 3575

Φ352

Φ241

Φ352

Φ16

750

11.3

RJ/F 35100

Φ352

Φ241

Φ352

Φ16

1000

15.1
