Media: polyester with antistatic Customization Accepted

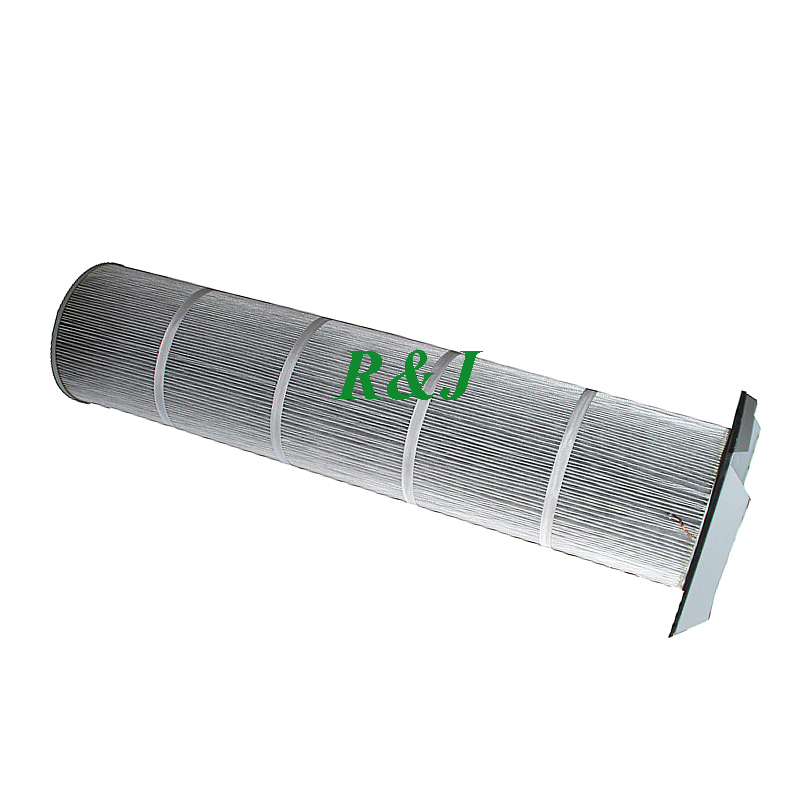

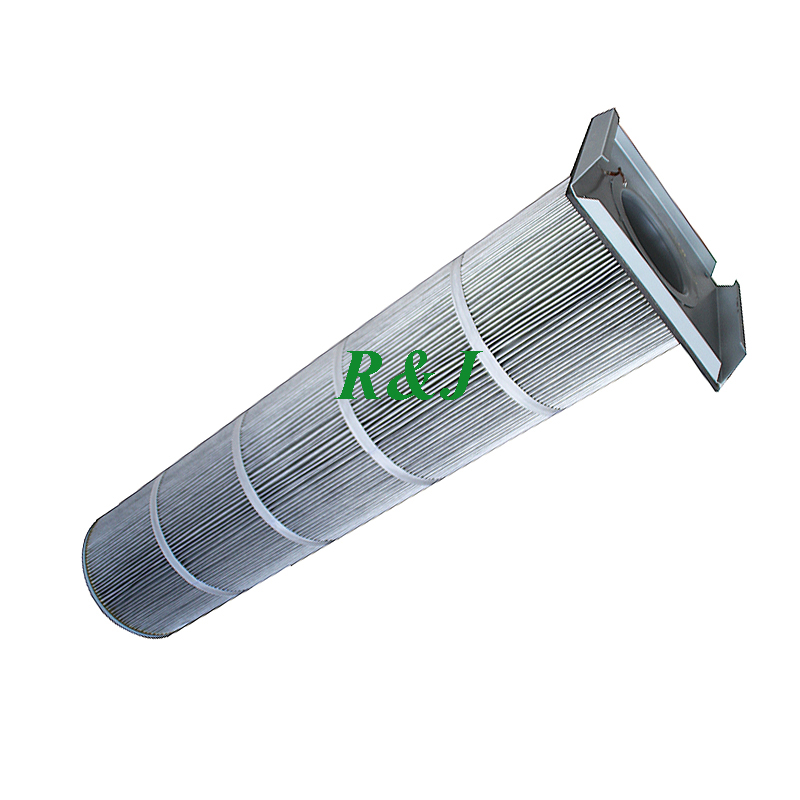

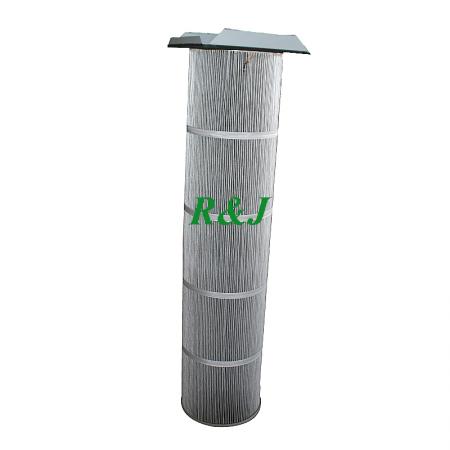

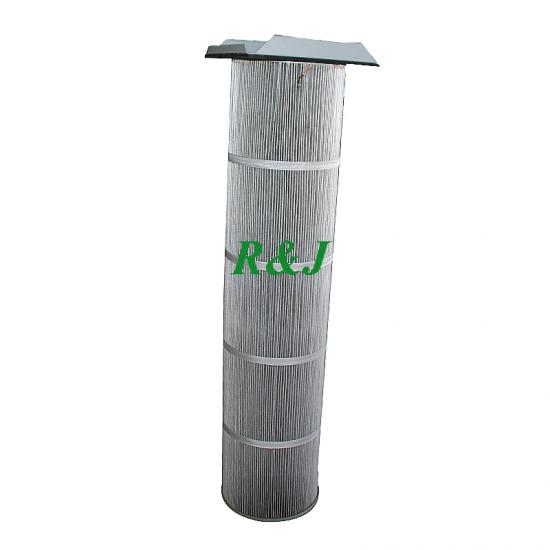

Category: Air Filter Cartridge
Order(MOQ):
1Properties and features
1.It can avoid electrostatic fire and be suitable for dust removal in explosion-proof condition.
2.The finest filtering precision: 0.3um, the conductivity: 10 8 Ω.
3.Suggest working temperature below 135 degrees.
Applications: gas and dust filtration in powder spraying, steel foundary, sand blasting, paint, wood, cement, mental glass processing and other industries.
Cartridge Model |
Top end |
Top end |
Bottom end |
Bolt hole(m²) |
Height |
Filtration area |
RJ/F 3266 |
Φ324 |
Φ213 |
Φ324 |
Φ14 |
660 |
9.4 |
RJ/F 3275 |
Φ324 |
Φ213 |
Φ324 |
Φ14 |
750 |
10.6 |
RJ/F 32100 |
Φ324 |
Φ213 |
Φ324 |
Φ14 |
1000 |
14.2 |
|
||||||
RJ/F 3566 |
Φ352 |
Φ241 |
Φ352 |
Φ16 |
660 |
10 |
RJ/F 3575 |
Φ352 |
Φ241 |
Φ352 |
Φ16 |
750 |
11.3 |
RJ/F 35100 |
Φ352 |
Φ241 |
Φ352 |
Φ16 |
1000 |
15.1 |
