Nylon mesh washable filter
Specification:
·Washable
·Large air flow and low resistance
·Temperature and moisture resistance
·High acid and alkali resistance
Application: Filter dust, be widely used in Fan Unit,diffuser and the indoor equipments withthe large air flow, also applied to the prefiltration of the air condition system and the clean room.
Outside Frame: aluminum alloy or nylon mesh
Media: PP, PA, PE material
Inside frame: galvanized or stainless steel
Class: G1,G2
Average arrestance:<65%
Order(MOQ):
1
Nylon mesh washable filter
Nylon mesh washable filter
Specification:
·Washable
·Large air flow and low resistance
·Temperature and moisture resistance
·High acid and alkali resistance
Application: Filter dust, be widely used in Fan Unit,diffuser and the indoor equipments withthe large air flow, also applied to the prefiltration of the air condition system and the clean room.
Outside Frame: aluminum alloy or nylon mesh
Media: PP, PA, PE material
Inside frame: galvanized or stainless steel
Class: G1,G2
Average arrestance:<65%
Type
Size W*H*D( mm )
Rated air flow (m3/h)
Media layers
Initial pressure drop (Pa)
1
595*595*10
4000
1-2
≤25
2
592*295*10
2000
1-2
3
595*595*21
4000
1-2
4
595*295*21
2000
1-2

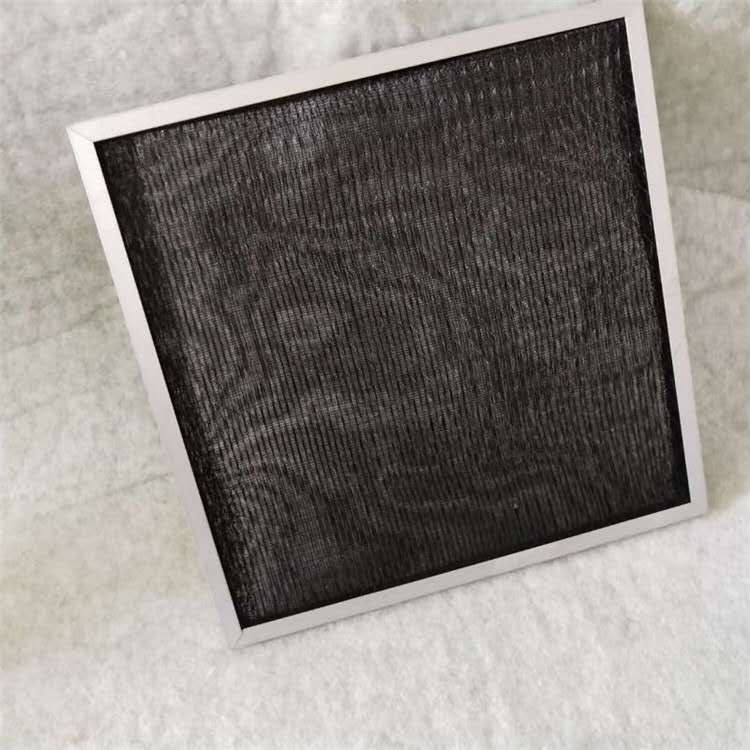

Product picture:
