Technical Specification:
Meida:Aramid
Operating temperature:204℃-240℃
Resistance to Hydrolysis:restricted
Resistance to Acids:restricted
Resistance to Alkalis:restricted
Resistance to Oxidation:good
Order(MOQ):
1
Product Description
|

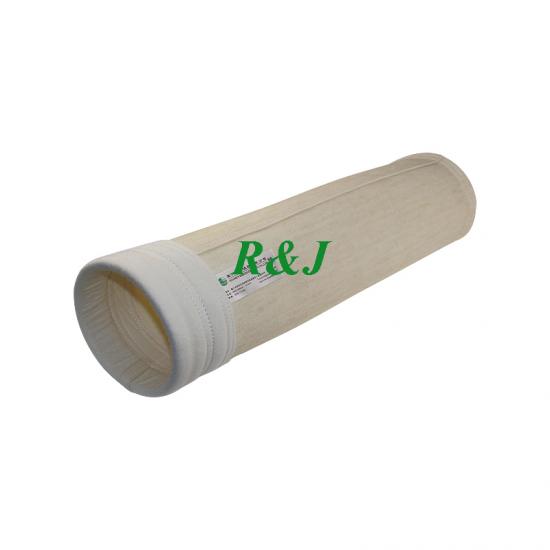

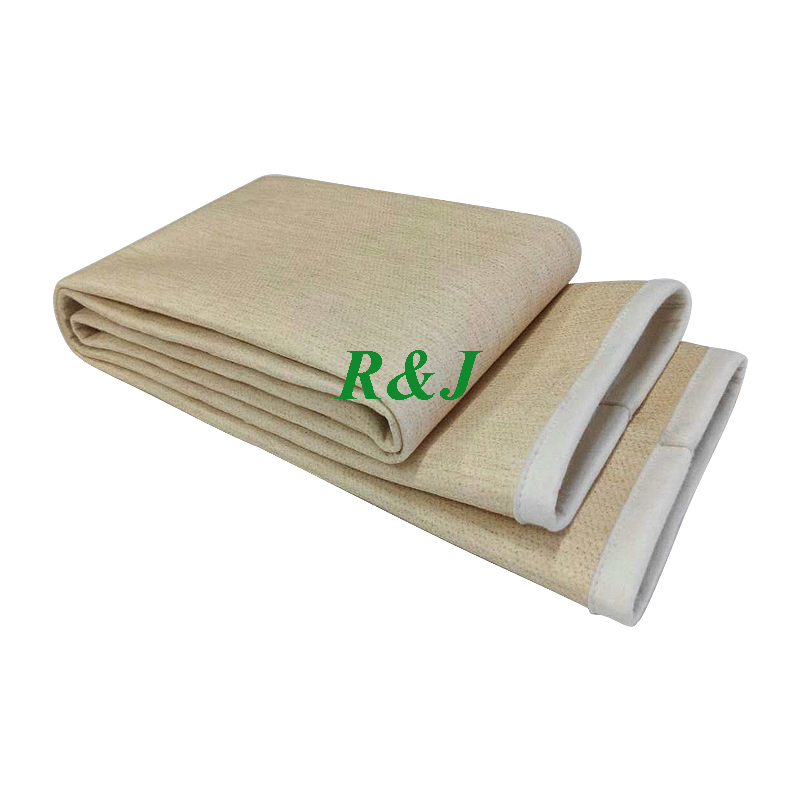

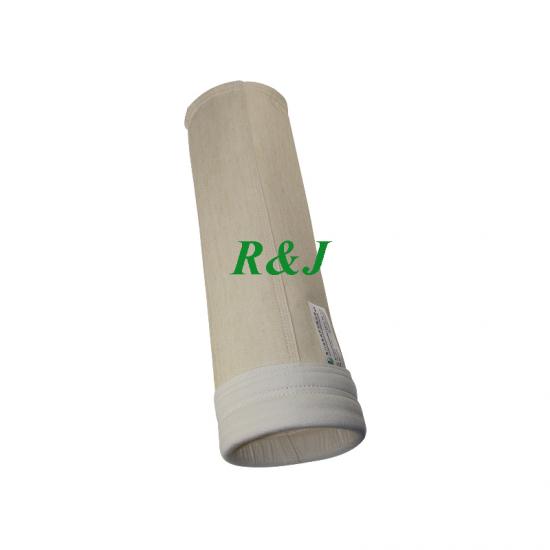

500gsm aramid needle punched felt |
|
|
Construction |
Needle Felt |
|
Fibre Composition |
Aramid Fibre |
|
Scrim Composition |
Aramid Scrim |
|
Felt Area Weight |
500g/m2 |
|
Thickness |
1.9mm |
|
Mean Air Permeability |
16(m3/m2/min@200pa) |
|
Breaking Strength-MD(warp) |
≥800 |
|
Breaking Strength-CMD(weft) |
≥1000 |
|
Breaking Elongation(N/5cm)-MD (warp) |
≤35 |
|
Breaking Elongation(N/5cm)-CMD (weft) |
≤60 |
|
Dry Shrinkage MD(130℃warp ) |
≤1.5 |
|
Dry Shrinkage CMD(130℃weft ) |
≤1.0 |
|
Operating Temperatures |
≤204 deg C |
|
Recommended Maximum Continuous |
204 deg C |
|
Recommended Maximum Surge |
240 deg C |
|
Finish |
Calendared/heat set/singed |
Advantages:
– Extra large filter surface pleated cartridge to replace filter bags without any modification.
– High flow and high contaminant holding capacity
– Unique filter medium which guarantees a very consistent performance
– Rigid pore construction prevents contaminant unloading at maximum differential pressure
– Inside-out flow traps particles inside the cartridge which prevents downstream contamination of the clean side during exchange
round bag (steel belt style) flat bag, special-shaped bag, drawstring bag,
Filter bag head with thick felt, bottom reinforcement, bag body with iron ring,etc.
Scope of application:
Cement plant, steel plant, waste power plant, asphalt mixing plant, thermal power plant, feed plant,
Flour factory, rice factory, ceramics factory, bathroom factory, foundry,etc.
