Filter bag

Air filter bag

Polyester blended filter bag

dust filter polyester
dust filter polyester dust filter polyester dust filter polyester

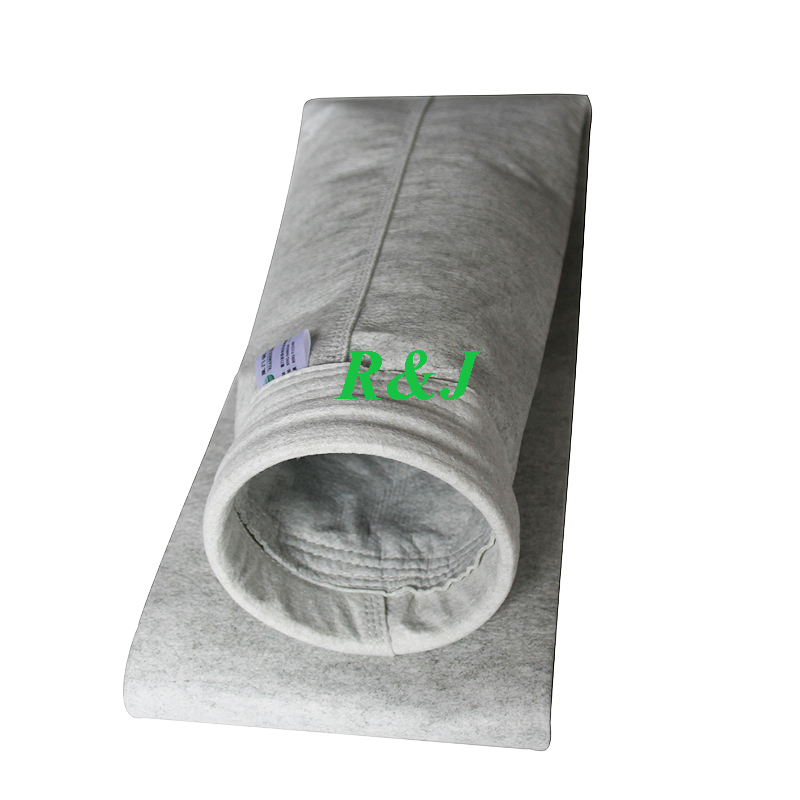

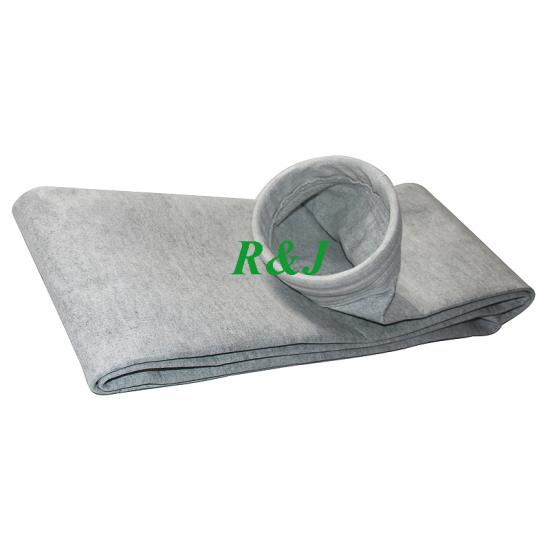

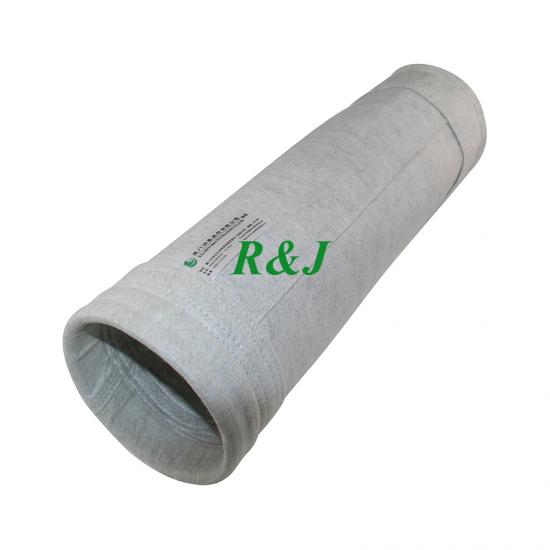

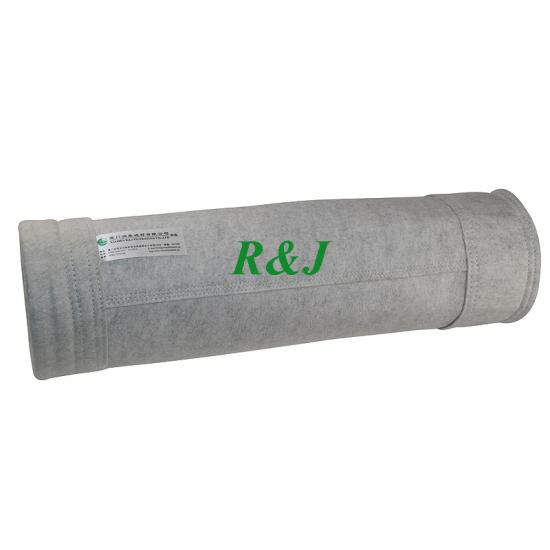

Polyester blended filter bag

Technical Specification:

Media:PE

Thickness:1.7mm

Unit Weight:500g/㎡

Operating temperature:130℃-150℃

  • Order(MOQ):

    1
INQUIRE now
  • Product Detail

Production：

500gsm antistatic  polyester needle punched felt

Construction

Needle Felt

Fibre Composition

Polyester+Conductive fibre

Scrim Composition

Polyester

Felt Area Weight

500g/m2

Thickness

1.7mm

Mean Air Permeability

15(m3/m2/min@200pa)

Breaking Strength-MD(warp)

≥1000

Breaking Strength-CMD(weft)

≥1200

Breaking Elongation(N/5cm)-MD (warp)

≤35

Breaking Elongation(N/5cm)-CMD (weft)

≤60

Dry shrinkage MD(130℃warp )

≤1.5

Dry shrinkage CMD(130℃weft )

≤1.0

Operating Temperatures

≤130 deg C

Recommended Maximum Continuous

130 deg C

Recommended Maximum Surge

150 deg C

Finish

Heat set/singed/calendered


Bag style:

round bag (steel belt style) flat bag, special-shaped bag, drawstring bag,
Filter bag head with thick felt, bottom reinforcement, bag body with iron ring,etc.
