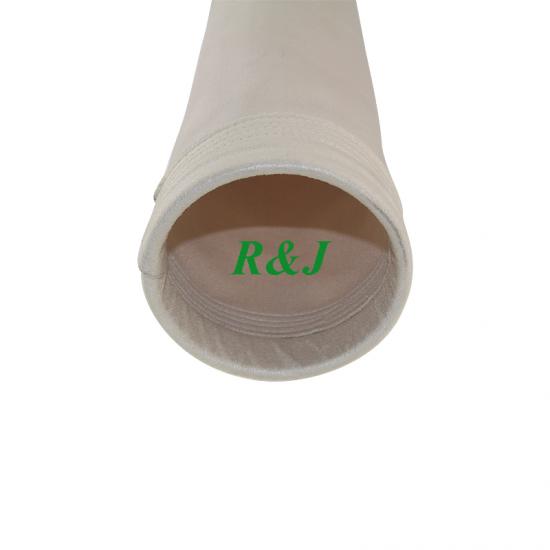

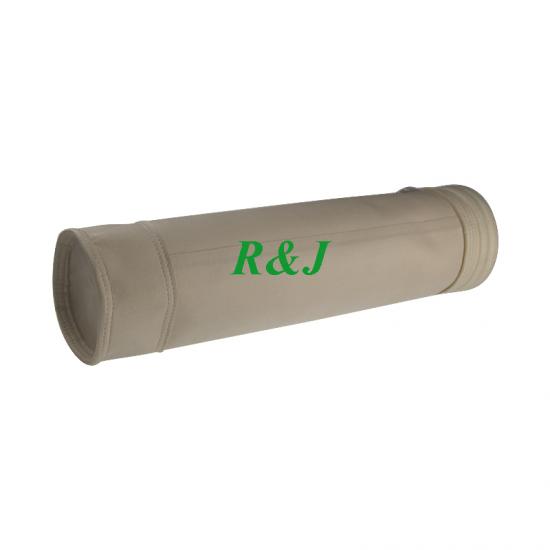

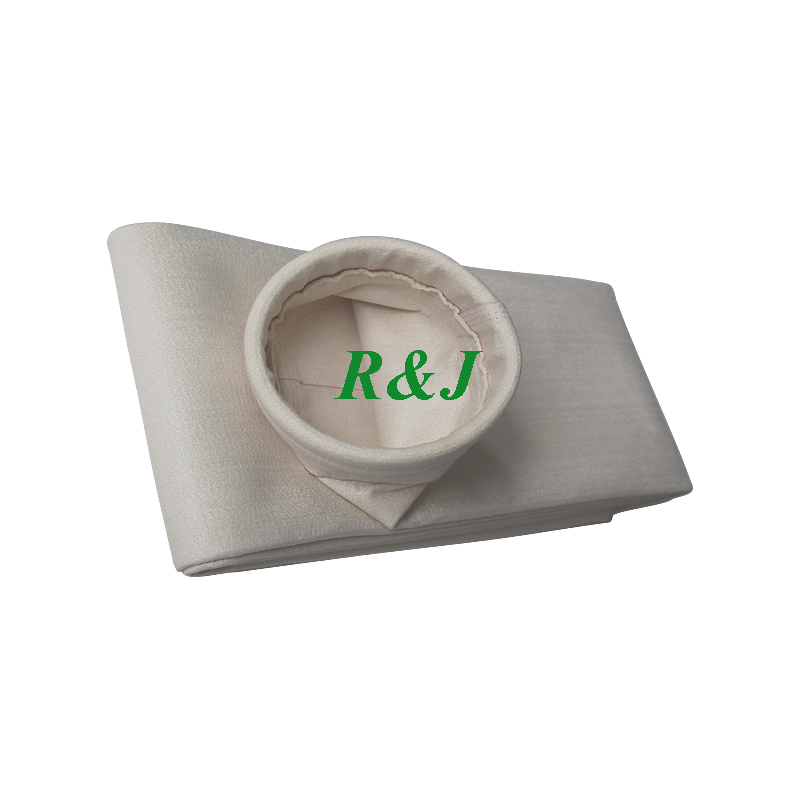

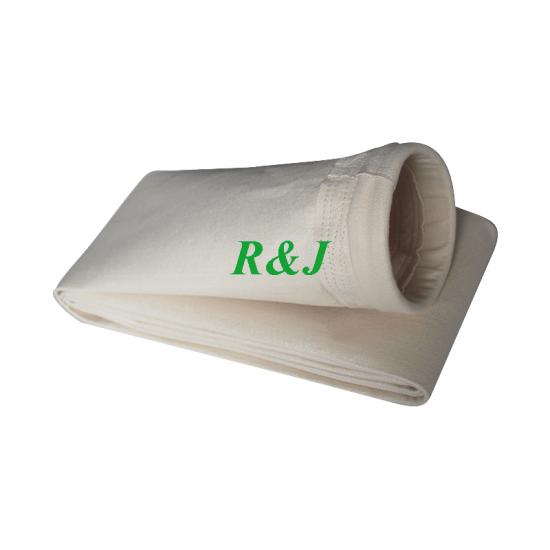

PPS filter bag

Technical Specification:

Meida:PPS

Operating temperature:160℃-190℃

Resistance to Hydrolysis:excellent
Resistance to Acids:excellent
Resistance to Alkalis:excellent
Resistance to Oxidation:restricted

  • Order(MOQ):

    1
  • Product Detail

Production:

550gsm PPS needle punched felt

Construction

Needle Felt

Fibre Composition

PPS Fibre

Scrim Composition

PPS Scrim

Felt  Area Weight

550g/m2

Thickness

1.8mm

Mean Air Permeability

15(m3/m2/min@200pa)

Breaking Strength-MD(warp)

800

Breaking Strength-CMD(weft)

1100

Breaking Elongation(N/5cm)-MD (warp)

35

Breaking Elongation(N/5cm)-CMD (weft)

60

Dry shrinkage MD(130warp )

1.5

Dry shrinkage CMD(130weft )

1.0

Operating Temperatures

160 deg C

Recommended Maximum Continuous

160 deg C

Recommended Maximum Surge

190 deg C

Finish

Singed/calendared/heat set



Bag style:

round bag (steel belt style) flat bag, special-shaped bag, drawstring bag,
Filter bag head with thick felt, bottom reinforcement, bag body with iron ring,etc.

Scope of application:

Cement plant, steel plant, waste power plant, asphalt mixing plant, thermal power plant, feed plant,
Flour factory, rice factory, ceramics factory, bathroom factory, foundry,etc.
