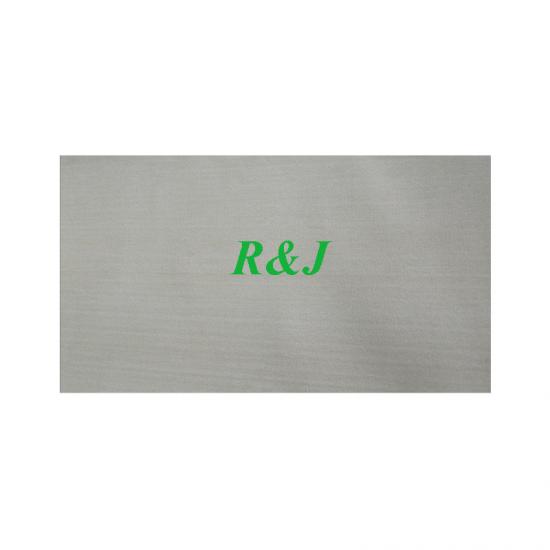

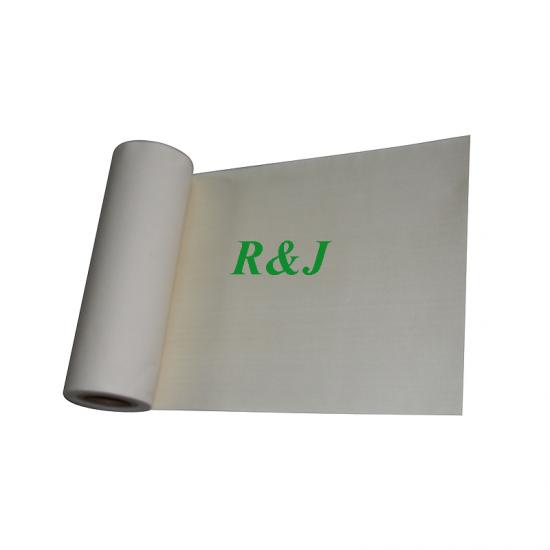

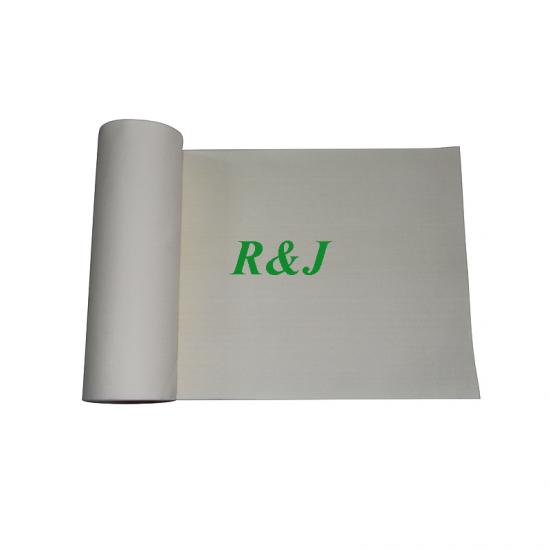

Acrylic Filter cloth

Technical Specification:

Media:Acrylic

Operating temperature:125℃-140℃
Resistance to Hydrolysis:excellent
Resistance to Acids:excellent
Resistance to Alkalis:excellent
Resistance to Oxidation:restricted

  • Order(MOQ):

    1
  • Product Detail


Production:

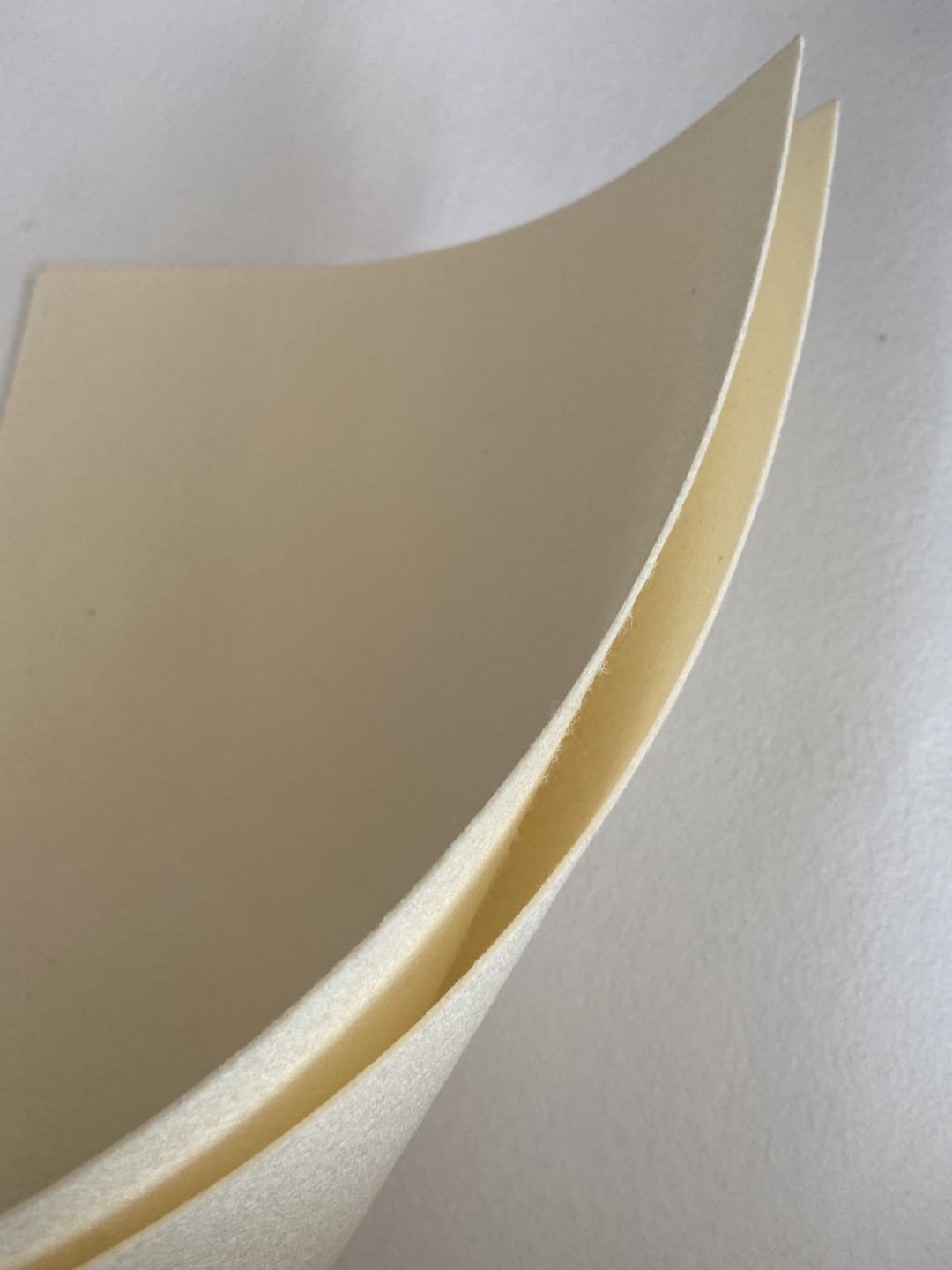

500gsm Acrylic Needle Punched Felt

Construction

Needle Felt

Fibre Composition

Acrylic Fibre

Scrim Composition

Acrylic Spun Scrim

Felt  Area Weight

500g/m2

Thickness

2.0mm

Mean Air Permeability

16(m3/m2/min@200pa)

Breaking Strength-MD(warp)

850

Breaking Strength-CMD(weft)

850

Breaking Elongation(N/5cm)-MD (warp)

35

Breaking Elongation(N/5cm)-CMD (weft)

60

Dry shrinkage MD(130warp )

1.5

Dry shrinkage CMD(130weft )

1.0

Operating Temperatures

125 deg C

Recommended Maximum Continuous

125 deg C

Recommended Maximum Surge

140 deg C

Finish

Singed/calendared/heat set
