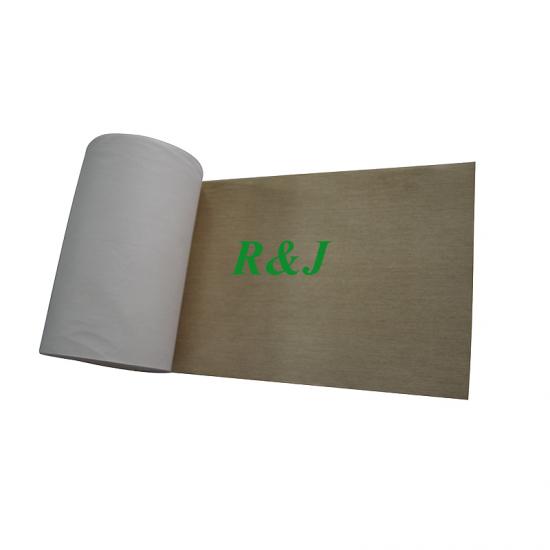

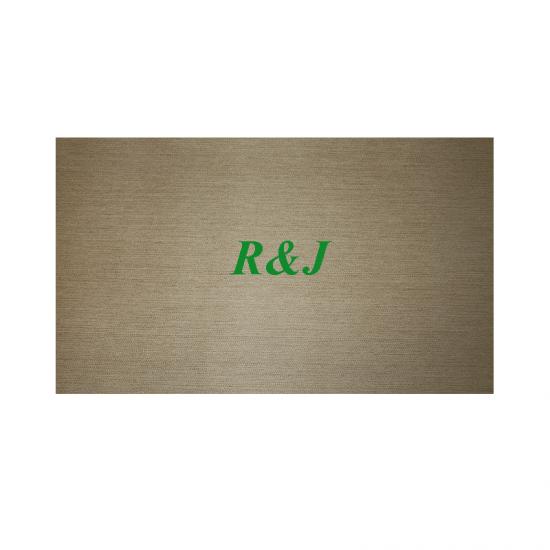

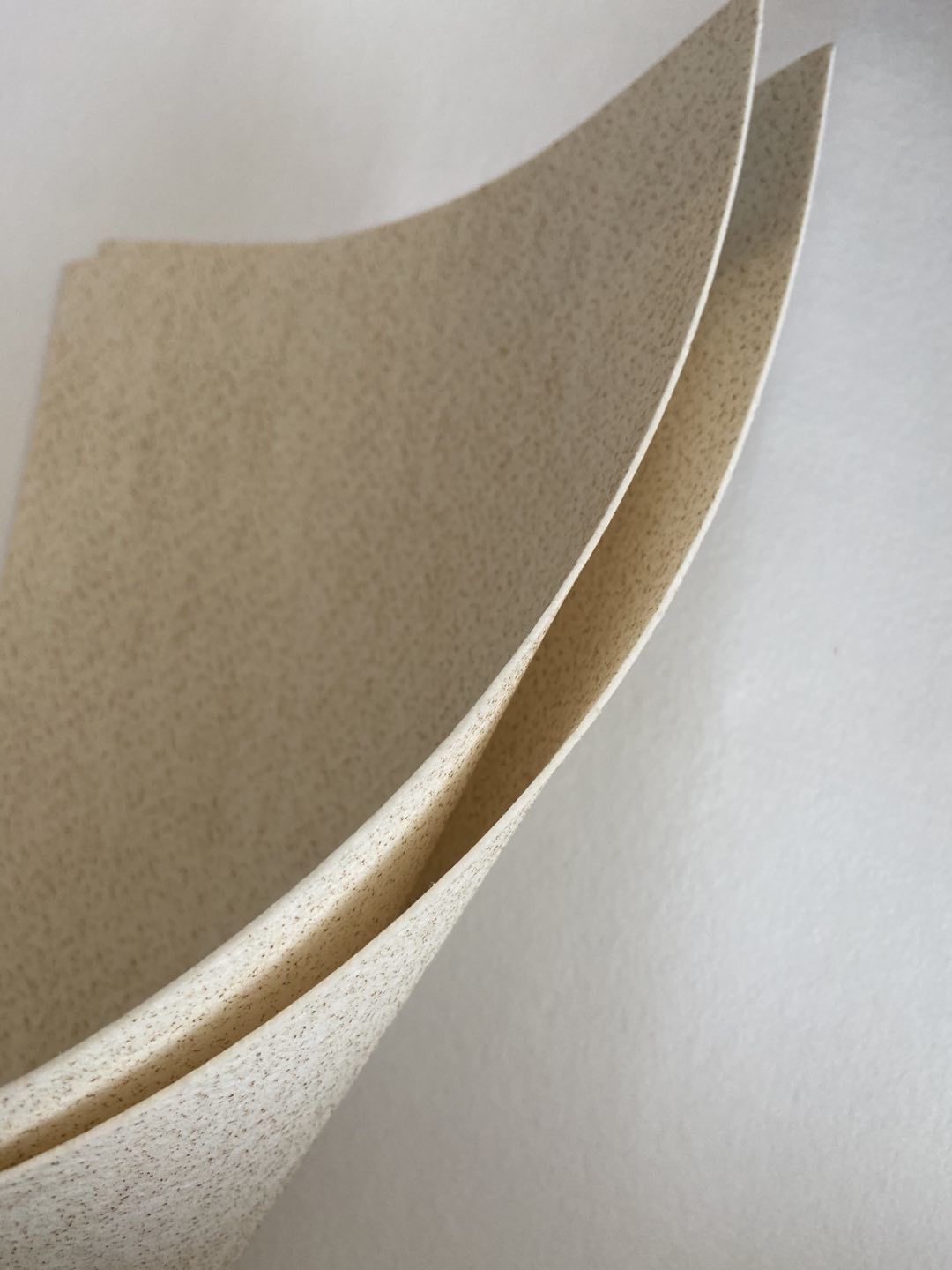

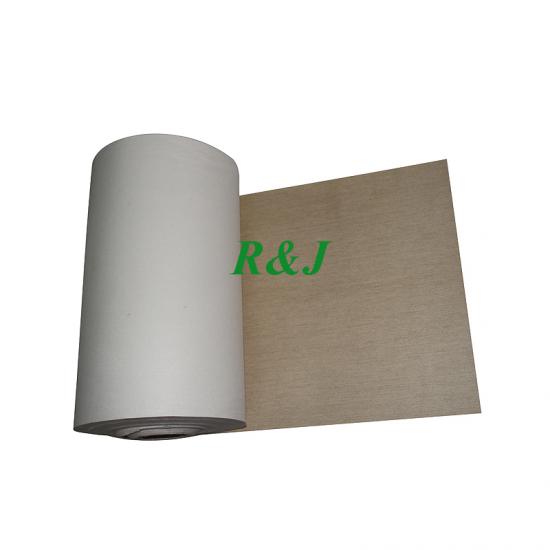

Aramid Filter cloth

Technical Specification:

Operating temperature:204℃-240℃

Resistance to Hydrolysis:restricted
Resistance to Acids:restricted
Resistance to Alkalis:restricted
Resistance to Oxidation:good

  • Order(MOQ):

    1
INQUIRE now
  • Product Detail

Production：

500gsm aramid needle punched felt

Construction

Needle Felt

Fibre Composition

Aramid Fibre

Scrim Composition

Aramid Scrim

Felt  Area Weight

500g/m2

Thickness

1.9mm

Mean Air Permeability

16(m3/m2/min@200pa)

Breaking Strength-MD(warp)

≥800

Breaking Strength-CMD(weft)

≥1000

Breaking Elongation(N/5cm)-MD (warp)

≤35

Breaking Elongation(N/5cm)-CMD (weft)

≤60

Dry Shrinkage MD(130℃warp )

≤1.5

Dry Shrinkage CMD(130℃weft )

≤1.0

Operating Temperatures

≤204 deg C

Recommended Maximum Continuous

204 deg C

Recommended Maximum Surge

240 deg C

Finish

Calendared/heat set/singed
