P84 filter cloth

Technical Specification:

Media:P84

Thickness:2.4mm

Unit Weight:500g/㎡

Operating temperature:240℃-260℃

  • Order(MOQ):

    1
INQUIRE now
  • Product Detail

Production：

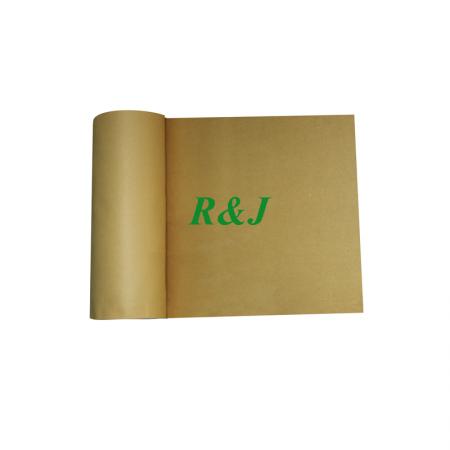

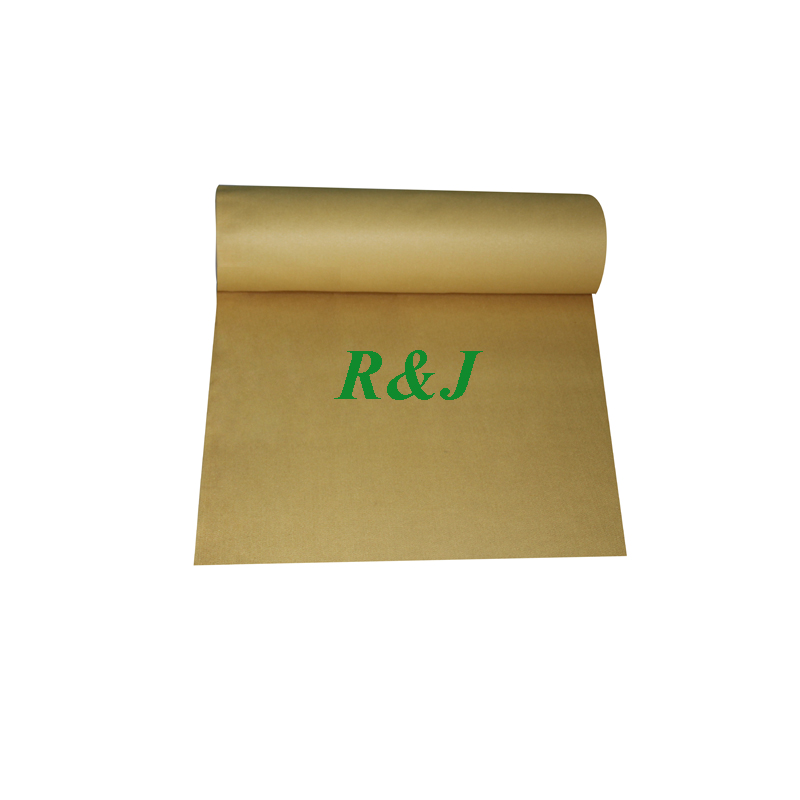

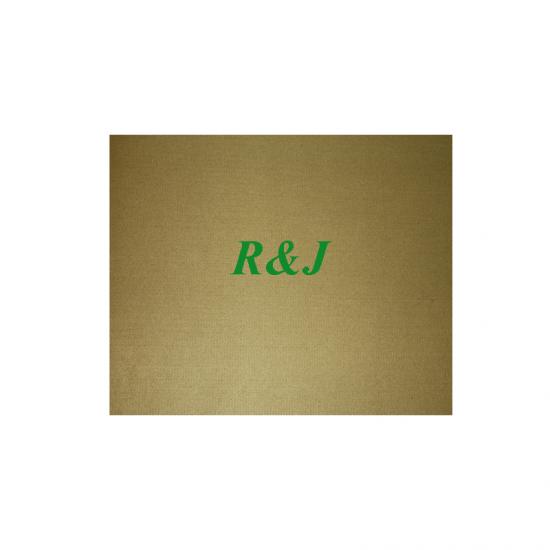

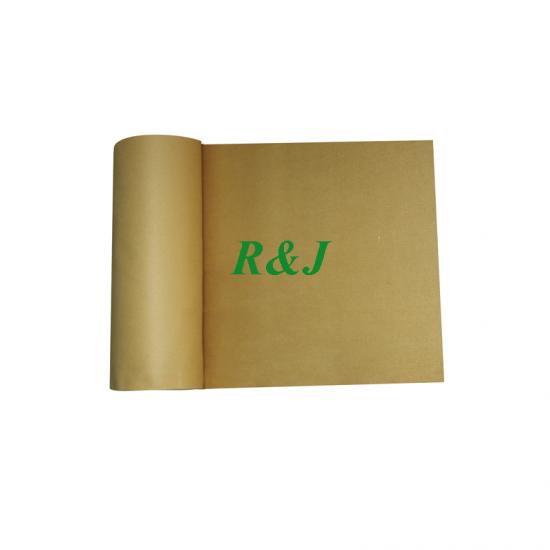

500gsm P84 needle punched felt

Construction

Needle Felt

Fibre Composition

P84 Fibre

Scrim Composition

P84 Scrim

Felt  Area Weight

500g/m2

Thickness

2.4mm

Mean Air Permeability

15(m3/m2/min@200pa)

Breaking Strength-MD(warp)

≥600

Breaking Strength-CMD(weft)

≥900

Breaking Elongation(N/5cm)-MD (warp)

≤35

Breaking Elongation(N/5cm)-CMD (weft)

≤50

Dry shrinkage MD(130℃warp )

≤3

Dry shrinkage CMD(130℃weft )

≤3

Operating Temperatures

≤240 deg C

Recommended Maximum Continuous

240 deg C

Recommended Maximum Surge

260 deg C

Finish

Singed/calendared/heat set
